EN545 Large Range Flexible Bolt Joint Carbon Steel PN10/16 PVC Pipe Universal Coupling
The material and performance of the product
Wide-range flexible compensation joints are usually made of high-performance materials such as stainless steel and EPDM rubber, which have good corrosion resistance, compressive resistance and flexible angle adjustment ability. These characteristics enable the flexible joints to maintain stable performance in high temperature or humid environments, ensuring long-term stable operation of the system.
Product Applications
1. Petrochemical industry: In the transmission pipeline system in the fields of petroleum, natural gas, chemical industry, etc., the flexible joint can withstand the harsh working environment such as high pressure, high temperature, corrosion, etc., to ensure the safe operation of the pipeline system.
2. Electric power industry: In the power transmission pipeline system, flexible joints can ensure the stability and safety of power transmission.
3. Metallurgical industry: In the conveying pipeline system in metallurgical production, flexible joints can ensure the smooth progress of the production process.
4. Shipbuilding industry: In the ship's piping system, the flexible joint can withstand the harsh working environment such as seawater corrosion and hull vibration to ensure the normal operation of the ship.
5. Aerospace industry: In the piping system of aerospace vehicles, flexible joints can ensure the normal operation of aerospace vehicles.
Product parameters
| | DN50mm~DN1200mm |
| | Ductile iron, carbon steel |
| | ISO2531, EN12842, ISO4422 |
| | PN10, PN16 |
| | Ductile iron with FBE ( fusion bonded epoxy) coating or Epoxy painting |
| | NBR or EPDM |
| | Carbon steel with galvanized zinc plated G4.8/G8.8 or SS304/SS316 |
| | Blue, black or as per customer's request |
| | For air, water, sewer and gas pipelines |
| | Wooden cases, protection layer or as per customers' requirement |
| DN | OD Range(mm) | L(mm) | D (mm) | Bolt |
| Size | Quantity |
| 50 | 59-72 | 102 | 165 | M12*180 | 2 |
| 65 | 72-85 | 102 | 185 | M12*180 | 2 |
| 80 | 88-103 | 102 | 185 | M12*180 | 4 |
| 100 | 109-128 | 102 | 218 | M12*180 | 4 |
| 125 | 132-146 | 102 | 250 | M12*180 | 4 |
| 150 | 159-182 | 102 | 272 | M12*200 | 4 |
| 175 | 192-210 | 130 | 312 | M12*200 | 4 |
| 200 | 218-235 | 130 | 335 | M12*220 | 6 |
| 250 | 272-289 | 130 | 405 | M12*220 | 6 |
| 300 | 315-332 | 130 | 460 | M12*220 | 6 |
| 300 | 322-339 | 130 | 435 | M12*220 | 6 |
| 350 | 340-360 | 150 | 455 | M12*250 | 6 |
| 350 | 351-368 | 150 | 518 | M16*250 | 8 |
| 350 | 374-391 | 150 | 568 | M16*250 | 8 |
| 400 | 400-429 | 150 | 580 | M16*250 | 8 |
| 400 | 418-435 | 150 | 580 | M16*250 | 8 |
| 400 | 425-442 | 150 | 625 | M16*260 | 8 |
| 450 | 455-472 | 150 | 665 | M16*260 | 10 |
| 500 | 500-532 | 150 | 690 | M16*260 | 10 |
| 500 | 527-544 | 150 | 715 | M16*260 | 10 |
| 500 | 555-572 | 150 | 715 | M16*260 | 10 |
| 600 | 600-630 | 150 | 790 | M16*260 | 10 |
Tips:The above data is only part of the data, if you need a special size, please contact us.
Preparation before product installation
1. Inspect pipes and equipment
2. Prepare installation tools and materials
3. Check the flexible joints
4. Environmental preparation
5. Security protection
Product installation precautions
1. Check the specifications and models
2. Clean the piping system
3. Choose the appropriate fixing method
4. Make sure the installation is secure
5. Check the tightness
6. Regular inspection and maintenance
Hot selling products
Pipe repair clamp Dismantling joint D-type large
deflection compensator joint
End Face Fully Gibault joint Flange adaptor
Sealed Rubber Expansion Joint
Double Sphere Rubber Joint Flexible Metal Braided Hose Gate valve
Workshop display

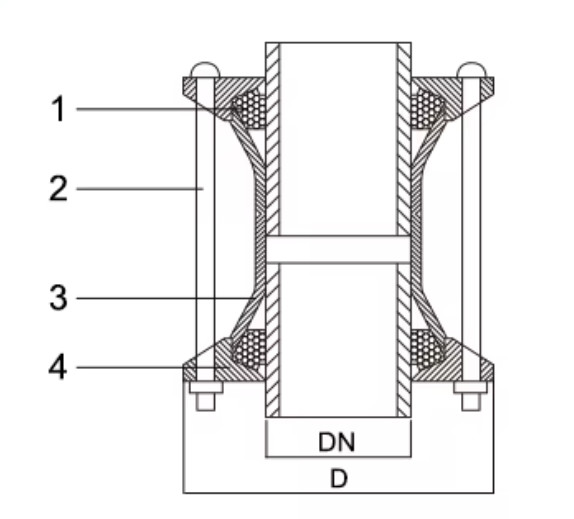

Product Composition
